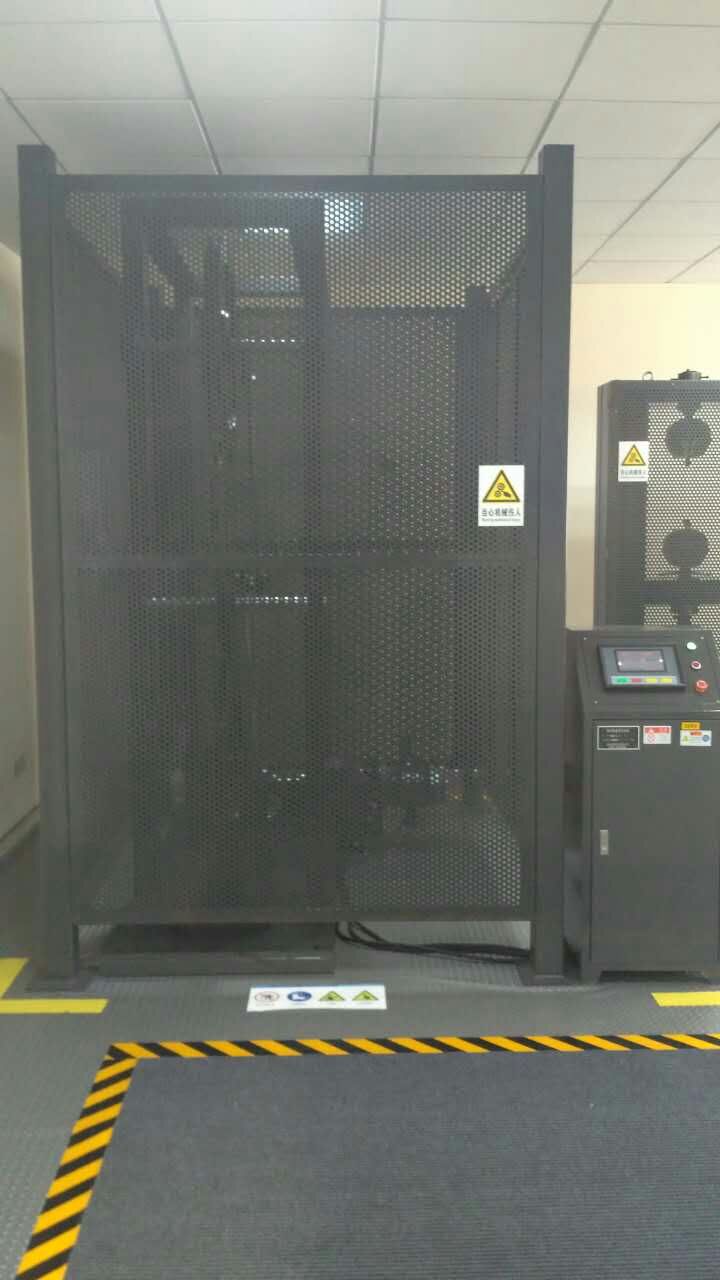

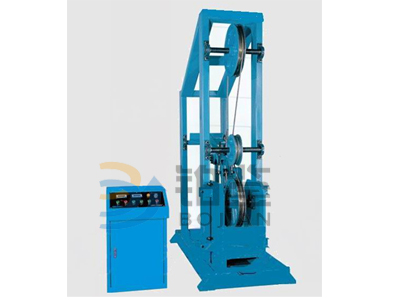

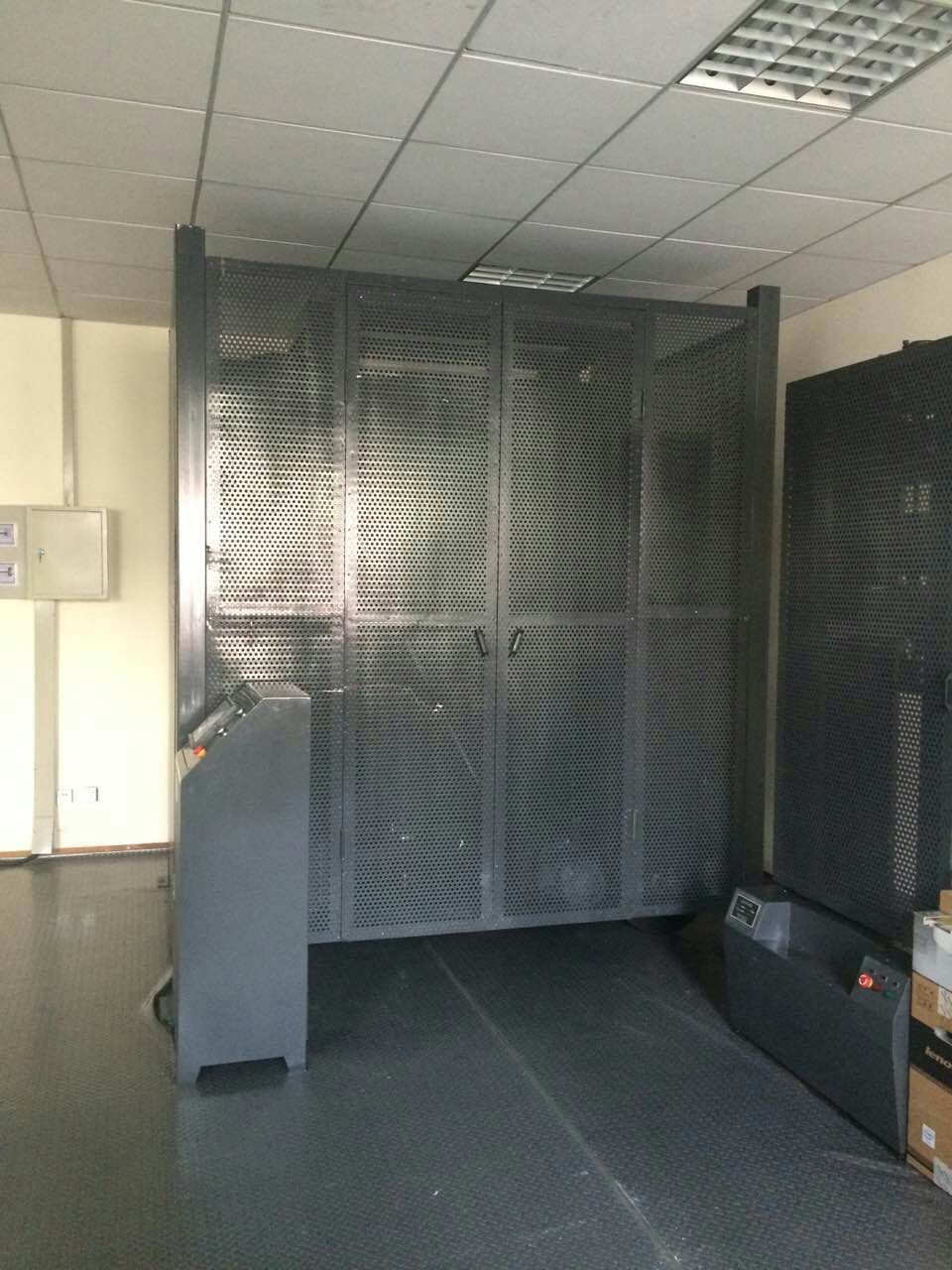

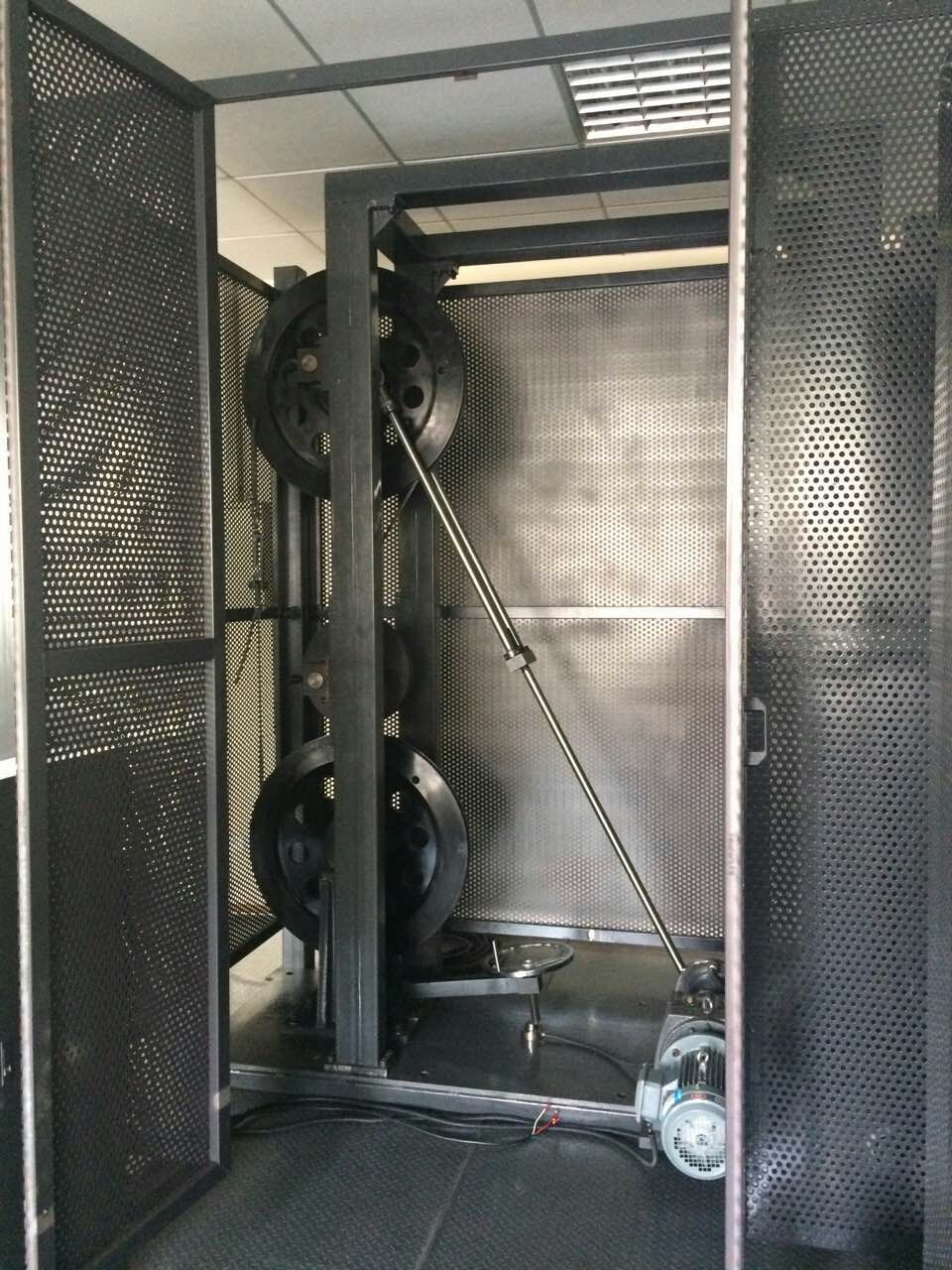

Steel wire rope bending fatigue testing machine used for testing the steel wire rope and stainless steel wire rope for 10-16mm diameter elevator.

GBT 12347-2008 steel wire rope bending fatigue test method

It can be used to measure the bending fatigue of steel wire broke, or sample or a whole number of bending fatigue fracture, the machine is equipped with an electronic counter, samples can be preset bending fatigue number, will automatically stop after sample reaches the preset fatigue times;

After breaking the sample, it will stop automatically and call the police.

1. The diameter of steel wire rope is 10.00-16.00mm;

2. The test load is 100 to 1000 pounds, including the overall weight of the rope wheel and weight block;

3. The test section length of the testing machine is 50-500mm;

4. The test frequency is 40 to 60 times per minute;

5. The test machine can freely set and display the cycle times of fatigue;

6. The test machine has the automatic stop function when the number of stops is set;

7. The testing machine has the dynamic function of test;

8. The testing machine can guarantee that the continuous fatigue of the test wire rope sample is 600,000;

9. Frame size of steel wire rope bending fatigue testing machine;

10. The weight of the test machine is 1500kg;

11. Child counter number: 0-99999 times.
